| Brand: | YUKA |
| Product Type: | Air Filtration |
| Product Series: | YD Series |
| Model No.: | L017/030/058/080/145/220/330/430/620 |
| Flow rate: | 1.0 to 37.2 m³/min |
| Port Size: | N/A |
| Micron rating: | 5 to 0.01 Micron |
| Materials of Construction: | Fiber glass |
| Operating pressure: | 1.5 to 16 bar (22 to 232 psig) |
| Operating Temperature: | 2 to 80 ℃ |
| Element Change Interval: | 6000-8000 hours |
| Accessories: | O ring |
| Origin | Shenzhen, China |

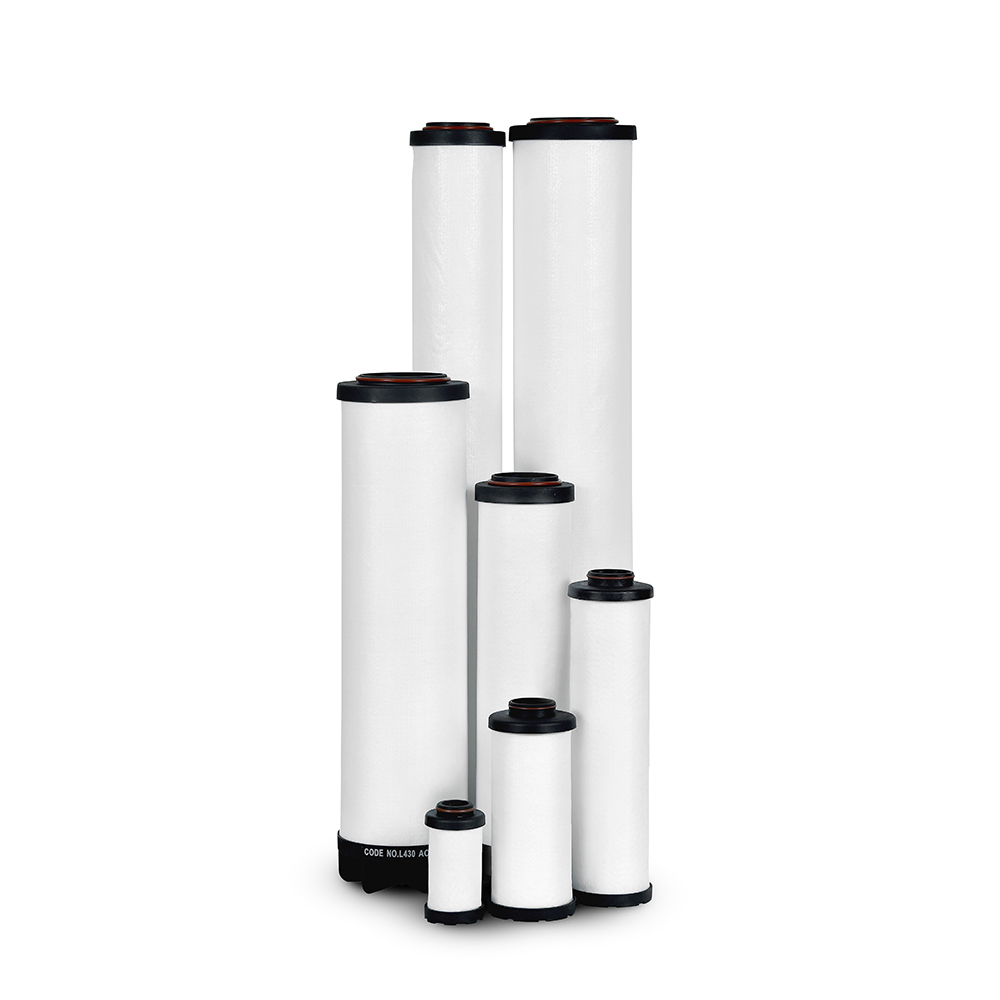

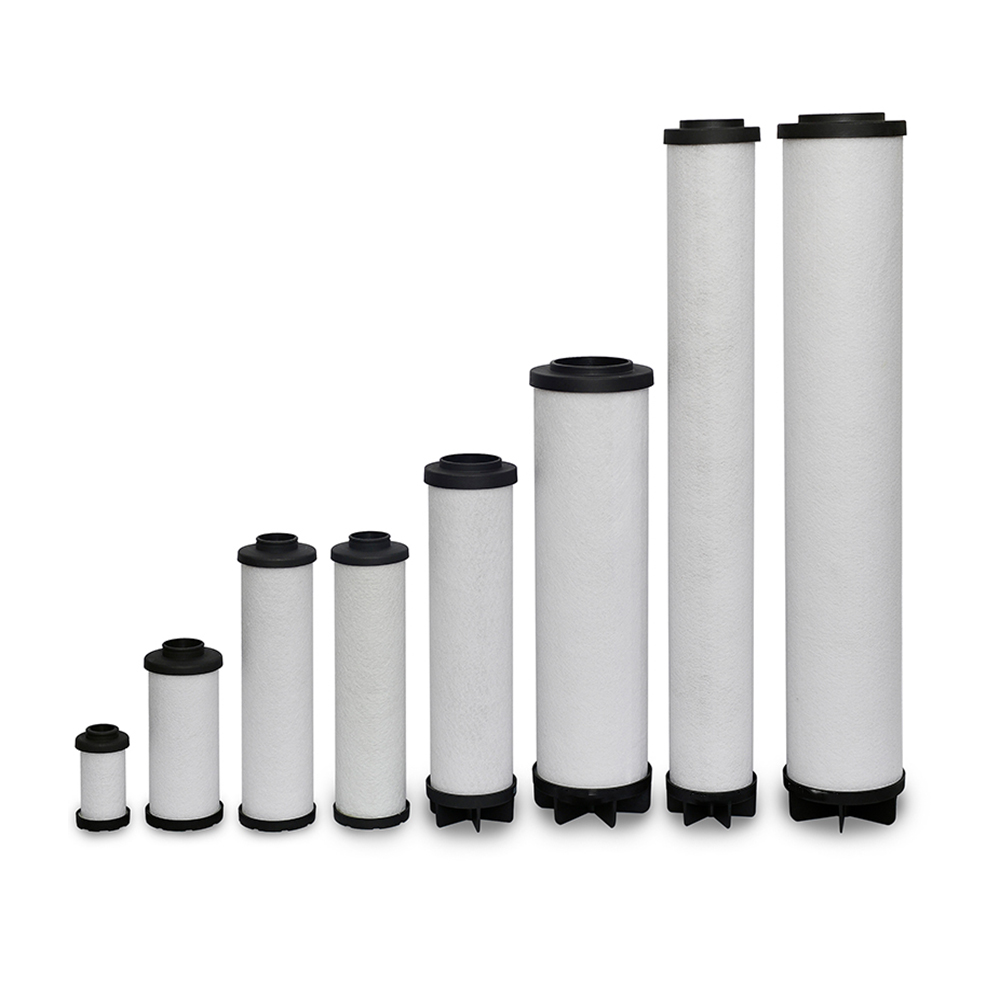

YUKA High Efficiency Air Filter Elements for Compressed Air System | Superior Particle & Oil Vapor Removal Solutions
The compression process introduces lubricant and wear particles into the system, piping distribution and storage tanks foster contaminants in the form of rust, pipe scale and bacteria. As a trusted partner to global air compressor producers and distributors, we’re driven to focus on Oil Vapor Removal Filters for compressed air system what are engineered to meet the rigorous demands of industrial applications. Our air filter elements excel in seven filtration grades:PF, AO, AA,AX,ACS, AR and AAR filters efficiently remove these contaminants to provide the best air purity and protect downstream equipment and your processes, saving costs.
✅PF- Coarse Pre-Filtration
As a primary filter, particles whose diameter down to 5 μm can be removed, the max. residual oil content is negligible.
✅AO- High Efficiency General Purpose
High efficiency general protection, dust particles, water mist & oil mist whose diameter down to 1μm can be removed, the residual content of oil mist does not exceed 0.6 mg/m³ (21ºC),1ppm(w), changed every 8000 hours.
✅AA- High Efficiency Oil Removal Filtration
Dust particles, water mist and oil mist down to 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³ (21ºC), 0.01ppm(w), changed every 8000 hours.
✅AX- Ultra High Efficiency Filtration
Ultra-efficient filtration, solid particles, liquids, oil aerosols, odors, and vapors are effectively removed at a high efficiency of 99.99% as small as 0.01 micron, the residual content of oil mist does not exceed 0.001mg/m³ (21ºC),0.001ppm(w), changed every 8000 hours.
✅ACS- Oil Vapour Reduction
Activated carbon filter element made from thousands of activated carbon granules of sufficient thickness, giving a superior adsorption capacity on a longer time.Oil vapor &odor can be removed, the max. resident content of oil vapor does not exceed 0.003 mg/m³ (21ºC), 0.003 ppm(w), changed when oil vapor detected.
✅AR- General Purpose Dust Filtration
Dry particle removal down to 1 μm, installed after adsorption air dryer, change every 6000 hours.
✅AAR- High Efficiency Dust Filtration
Dry particles removal down to 0.01μm can be removed, installed after adsorption air dryer, change every 6000 hours.
Why Choose Us?
• With over 27+ years of experience in research and development, production, and marketing.
• Production facility covers a total of 20000 square meters.
• Help you quickly find long-term and reliable supply resources
• Reduce your international procurement risks and costs
• Provide you with a wide variety of compressed air filtration and separation equipment to meet the varying needs of the market.
• Extensive experience with well-known air compressor brands.
Contact Heng Sheng Filtration Today
Get in touch with Heng Sheng Filtrations's sales experts today to learn more about Inline Filters for air compressors and why these components are so important to overall air compressor performance. Please drop us an e-mail at sales@hsfiltration.com. If you can not reach us by phone, please feel free to visit our website at: //www.hsfiltration.com.
Literature and Reference Materials
HSAIR Catalogue_YUKA YD Series Air Filters 16 bar.pdf
