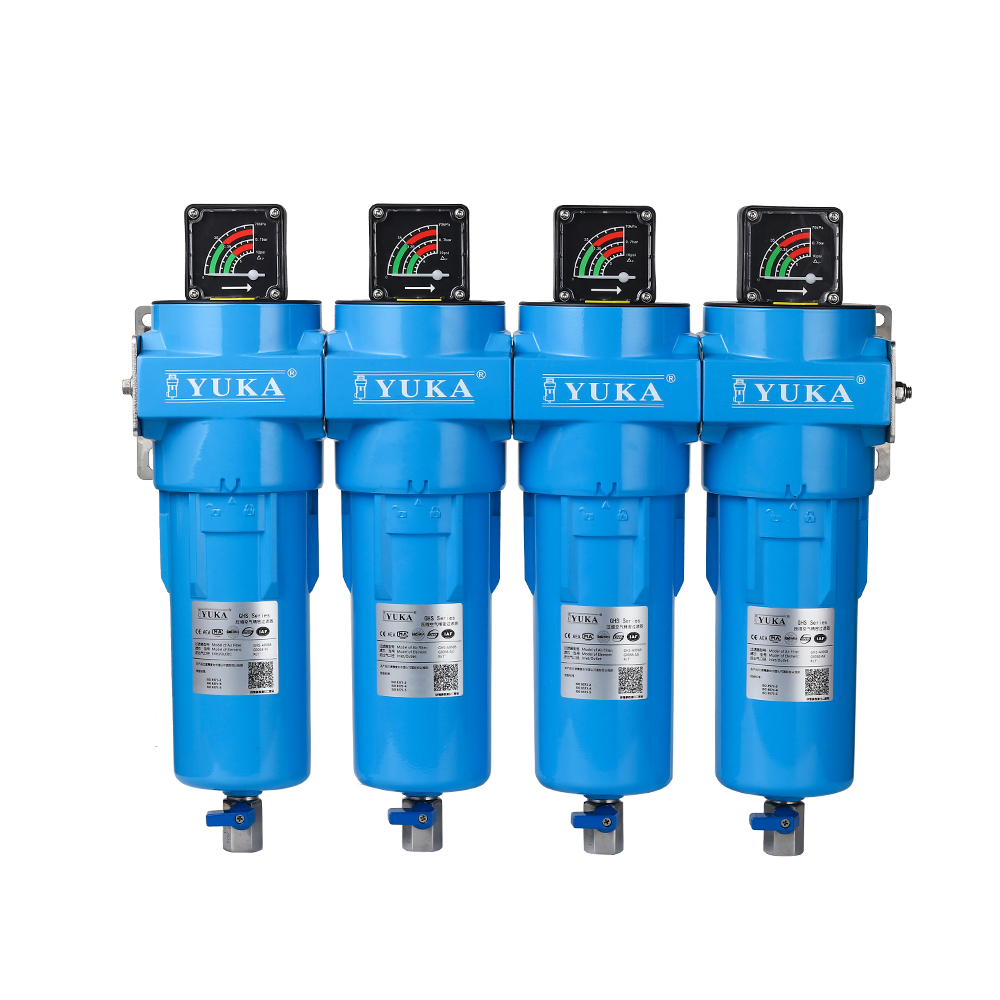

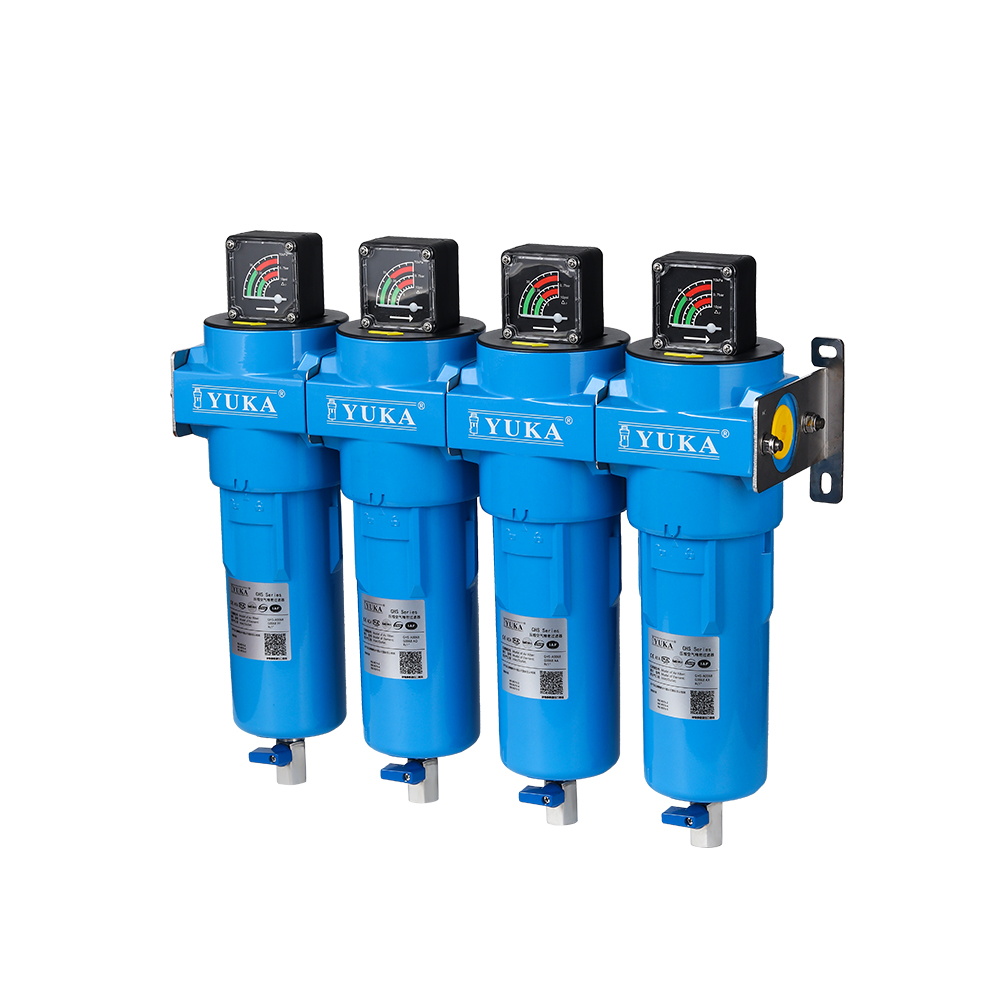

YUKA GHS-A0068 0.01Micron Compressed Air Line Filter, 3.6 m³/min, 1" RC/NPT

YUKA GHS-A0068 0.01Micron Ultra Filtration Compressed Air Line Filter, 3.6 m³/min, 1" RC/NPT for Ingersoll Rand/Atlas Copco Air Compressors, Refrigerated Air Dryers, Nitrogen Generators, Helping You Success in High-end Industry

The GHS-A0068 inline air filter fromYUKA is rated to 3.6m³/min and utilizes 1" Rc threads. This air filter is designed with 7 filtration grades to remove all particles down to 0.01 micron and will also remove oil aerosol vapors down to 0.001 mg/m³ (0.001 ppm). This GHS-A0068 AA is most commonly installed downstream of a refrigerated air dryer to prevent  oil vapor from entering the air dryer and damaging the finished products. So this model is suited with differential pressure indicator to show the differential pressure, internal floating ball automatic drain to discharge condensate without air loss.

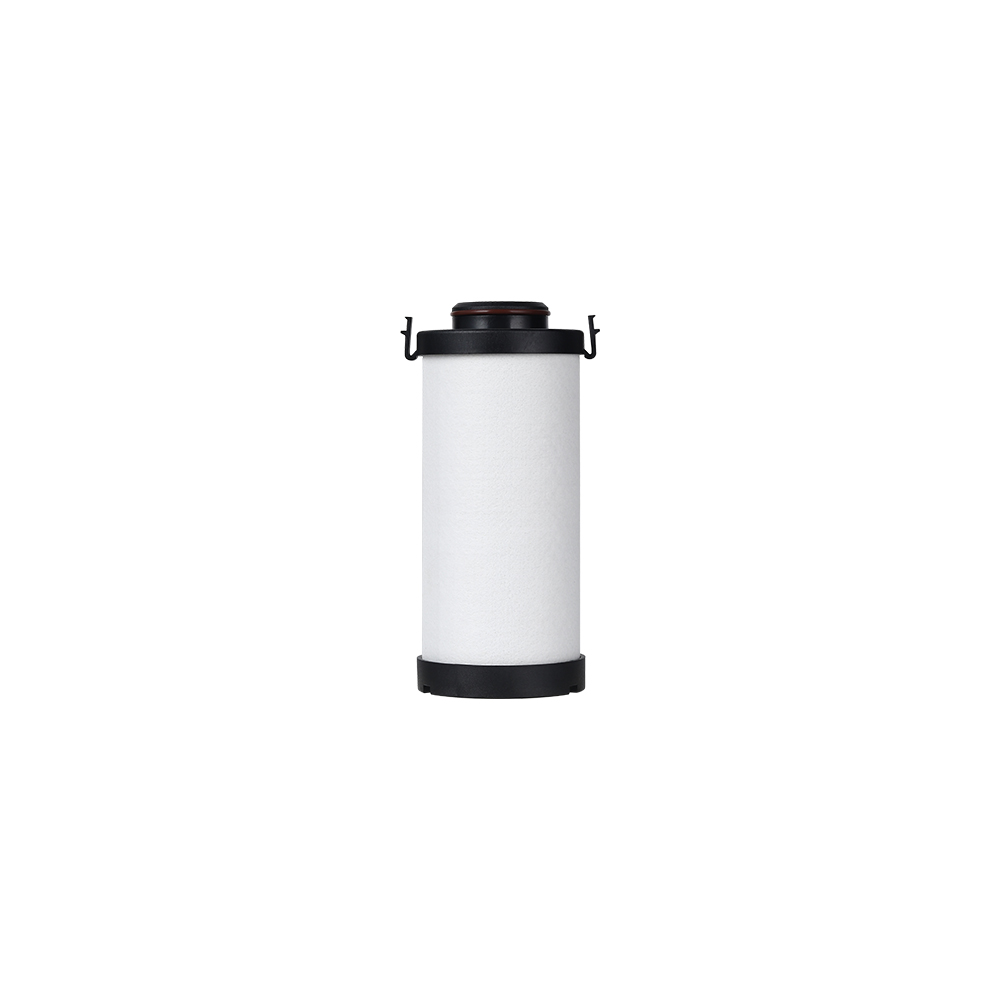

If you already have our GHS-A0068 air filter assembly and only need the replacement internal filter element, you could see the air filter element code G0068-AA printed on the end cap.

YUKA’s advanced new generation GHS-A Series compressed air filters reduce contamination in your air stream to help protect your critical processes and valuable equipment. Our air line filters are rigorously tested and engineered with superior components to provide years of reliable performance and consistently high-quality air.

Better Quality

Even your compressed air system installed oil-free air compressors, but without effective filtration solution, products and manufacturing processes that depend on dry clean compressed air are subject to increased scrap, poor quality and additional maintenance. We have been manufacturing quality air filters in China over 27 years, we professionally address these issues, helping to assure your compressed air system delivers clean, high-quality air throughout your equipments.

Better Efficiency

YUKA GHS-A Series air filters have been engineered to deliver low pressure drop throughout the life of the filter element, this new model we still use wrap technology to prevent filtration layers from being punctured and maintaining a low pressure drop on all compressed air, and provide a differential pressure indicator that shows differential pressure on the air filter housing. Long element life provides efficient operation for up to 6000 hours between element changeouts, helping to reduce overall ownership costs.

Designed with Maintenance in Mind

✅ Features such as no-touch element replacement and signs of arrow and lock designed in front of air filter housing to indicate the direction when tighten and loosen.

✅ The both sides of air filter housing designed with connection screw holes requires minimal space around the filter, allowing GHS-A Series air filters could be installed easily in a line where other filters won't fit.

✅Visual bowl automatic drain HAD10B and manual drain valve are optional for you

Key Aspects of Make Us Different with Other Suppliers- GHS-A0068

✅ Design with an exquisite and unique appearance.

✅ Patented element end cap with buckle to fix and protect partners’ benefits, minimizing turbulence and pressure losses

✅ Filter element with stainless steel mesh withstands high differential pressure while minimizing flow restriction through the element

✅ High-efficiency drainage layer improves liquid drainage properties and enhances chemical compatibility

✅ Ergonomic bowl design with no-touch filter element simplifies element replacement

✅ Patented differential pressure gauge shows differential pressure drop and economical operating efficiency

✅ Visual bowl automatic drain HAD10B and manual drain valve are optional for discharging accumulated condensate

✅ All air filter housings are protected by the Alocrome process, making them suitable for use in environments with severe corrosion, such as offshore platforms.

✅ With TUV and in-house test Certificates.

Technical Specifications

Connection Type: Rc 1”

Flow Capacity: 3.6 m³/min

Filtration Grade: 5 to 0.01 µm

Max.Proof Pressure: 16 bar (232 psi)

Operating Pressure: 13 bar with automatic drain

Temperature Range: 1.5°C to 80°C

Why Trust HSAIR as Your Long-term Partner in China?

Nowadays more and more factories sacrifice good quality and raw materials to participate in price flights Instead of ignoring the product's reliable performance、safety and labour and time costs, especially for industrial pressure vessel products.

YUKA & HAIR have had a reputation in China for maintaining a high level of quality and service first. They contribute to the supply of high quality compressed air filtration products to manufacturers and distributors of industry equipment in order to gain long-term benefits and sustainably grow.

Reach Out for More Product Information!

Upgrade your air compressors with our industrial compressed air filters. Request a free consultation today or obtain our product catalog to find the perfect solution. Please drop us an e-mail at sales@hsfiltration.com. If you can not reach us by phone, please feel free to visit our website at: //www.hsfiltration.com.

✅ Browse our catalog on line to find the right filter for your model.

✅ Request a free consultation to optimize your compressed air system.

✅ Order now and enjoy bulk pricing for industrial clients.

Literature and Reference Materials
