| Brand | YUKA |
| Product Type | Air Separation |
| Product Series | WS Series |
| Model No. | WS1000F |
| Flow rate | 60.0 m³/min |
| Port Size | DN125 |
| Micron rating | N/A |
| Materials of Construction | Aluminum Alloy |
| Operating pressure | 1.5 to 13 bar |
| Operating Temperature | 2 to 80 °C |
| Housing Service Life | 15 years |
| Element Change Interval | N/A |
| Compatible Element | N/A |
| Accessories | Sight Glass, Auto Drain HAD20B, Manual Drain Valve |
| Origin | Shenzhen, China |

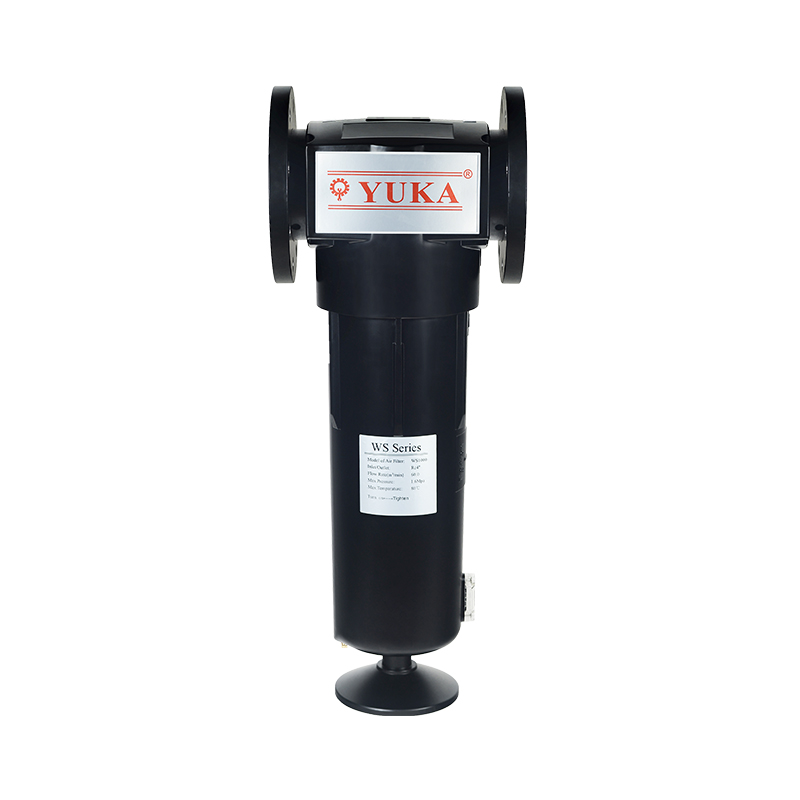

Protect Your Compressed Air Systems from Bulk Liquid Damage—YUKA High Efficiency Cyclone Water Separator WS1000F Resolves This Problem for You
Compressed air systems contain bulk liquid that causes pipeline corrosion, damage to valves, air cylinders, and tools, and reduces the efficiency of after-air coolers, heat exchangers, and compressed air filters. As the largest manufacturer of high quality compressed air and gas water separators in China, we not only promise our water separator has the separation rate 99.9%, but also make sure the housing is enough thickness to guarantee the safety when operate.
YUKA WS1000F is designed with flange connection to remove condensate without air loss at the compressor's compressed air discharge point. They're a must energy-efficient functioning of downstream refrigerated air dryers and coalescing air filters. Our air water separators are friendly designed with sight glass and the mechanical reliable float ball condensate drain HAD20B. The separation rate is 99.9% at a flow rate of 60 m³/min.
Key Features of YUKA WS1000F
▶ Unmatched Moisture Removal
- Advanced cyclone technology remove 99.9% of water
- Prevents corrosion in downstream tools/pneumatic equipment
- Meets ISO 8573-9 air purity standards
▶ Optimized for High-Volume Operations
60.0 m³/min airflow capacity supports heavy-duty compressors up to 360HP
▶ Proof Max. Working Pressure
Durable aluminum construction withstands 16 bar working pressure without sight glass
▶ Profit-Boosting Value for Your Business
High quality promised, Easy integration with screw/piston compressors, dryers, and storage tanks
▶ Low-maintenance Design
Don’t need to change air filter element, reduces customer service costs
▶Certification
CE certifications simplify global distribution
Technical Highlights
Model: WS1000F
Port Size: DN125
Max Flow Rate: 60.0 m³/min
Working Pressure: 16 bar
Initial Pressure Drop: ≤0.07 bar
Drain Type: Automatic float drain
Compliance: CE, Factory in-house Report
