| Parameter | Value |
|---|---|
| Brand | YUKA |
| Product Type | Air Separation |
| Product Series | WS Series |
| Model Number | WS50 |
| Flow Rate | 4.5 m³/min |
| Port Size | Rc1" |
| Filtration Rating | N/A |
| Construction Material | Aluminum Alloy |
| Proof Pressure | 16 bar (232 psig) |
| Operating Pressure | 1.5 to 13 bar |
| Operating Temperature | 2 to 80 °C |
| Service Life | 15 years |
| Maintenance Interval | N/A |
| Compatible Filters | N/A |
| Standard Accessories | Sight Glass, Float Ball Drain |
| Manufacturing Origin | Shenzhen, China |

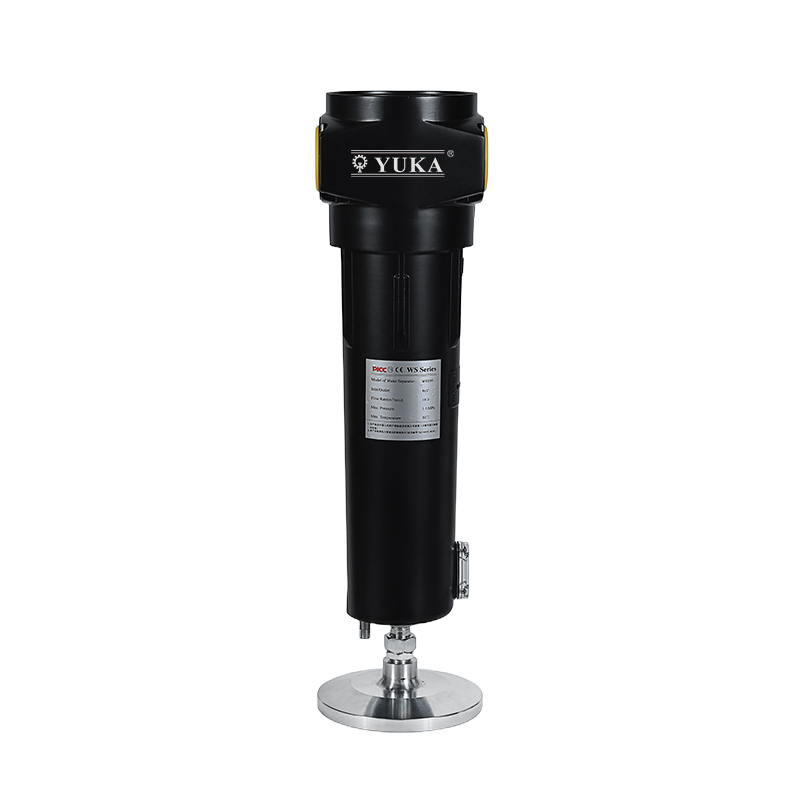

Efficiently Remove Compressed Air System’s Water with YUKA 2-1/2” Centrifugal Water Separators with Air Flow Rate 25.0 m³/min, max.Working Pressure 16 bar
YUKA is the largest manufacturer of high quality compressed air and gas water separators in China, we not only promise our water separator has the separation rate 99.9%, but also make sure the housing is enough thickness to guarantee the safety when operate.
WS250 is a very hot model and installed with kinds of brands air compressors to remove condensate at the compressed air system’s discharge point. It is a must energy-efficient functioning of downstream refrigeration air dryers and air line filters. Equipped with sight glass and the mechanical reliable float ball condensate drain HAD20B and manual drain valve.
Technical Specifications
Port Size: RC or NPT 2-1/2”
Flow Rate: 25.0 m³/min
Max.Proof Pressure: 16 bar
Working Pressure: 1 to 13 bar with manual drain valve
Drain Type: Auto-float ball drain+ manual drain valve
Material: Anodized Aluminum
Key Features
✔ External surface epoxy painted for maximum corrosion
✔ Static rotary vane
✔ Designed without a filter element
✔ Keep 99.9% high efficiency separation
✔ Used to protect the pre-filter of refrigerated and adsorption air dryers from bulk liquid contamination.
✔ For the removal of bulk condensed water and liquid oil
✔ Reduce pipe-rusting conditions from water and the damages to valves, cylinders
✔ High liquid removal efficiencies at all flow conditions
✔ Can be installed in any position of a compressed air system
✔ Lower operational and maintenance costs
✔ Improve the air quality.
Why Trust and Choose Us?
As a leading manufacturer of high quality compressed air and gas treatment equipment since 1998 in China.
✔ With over 27+ years of experience in research and development, production, and marketing.
✔Production facility covers a total of 20,000 square meters.
✔ Help you quickly find long-term and reliable supply resources
✔ Reduce your international procurement risks and costs
✔ Provide you with a wide variety of compressed air filtration and separation equipment to meet the varying needs of the market.
✔ Extensive experience with well-known air compressor brands.
Contact Heng Sheng Filtration Today
Get in touch with Heng Sheng Filtrations's sales experts today to learn more about our water separators. 📧 sales@hsfiltration.com | website at: //www.hsfiltration.com # Moisture Water Separator Supplier Air Compressor Water Separator #Industrial Air Treatment # Air Dryer Filter
Literature and Reference Materials
HSAIR Catalogue_YUKA WS Series Air Water Separators 16 bar.pdf
