| Brand | YUKA |
| Product Type | Air Separation |
| Product Series | WS Series |
| Model Number | WS800 |
| Flow Rate | 50.0 m³/min |
| Port Size | Rc3" |
| Filtration Rating | N/A |
| Construction Material | Aluminum Alloy |
| Proof Pressure | 16 bar (232 psig) |
| Operating Pressure | 1.5 to 13 bar with SG AD |
| Operating Temperature | 2 to 80 °C |
| Service Life | 15 years |
| Maintenance Interval | N/A |
| Compatible Filters | N/A |
| Standard Accessories | Sight Glass, External FloatingAuto Drain and MDV. |
| Manufacturing Origin | Shenzhen, China |

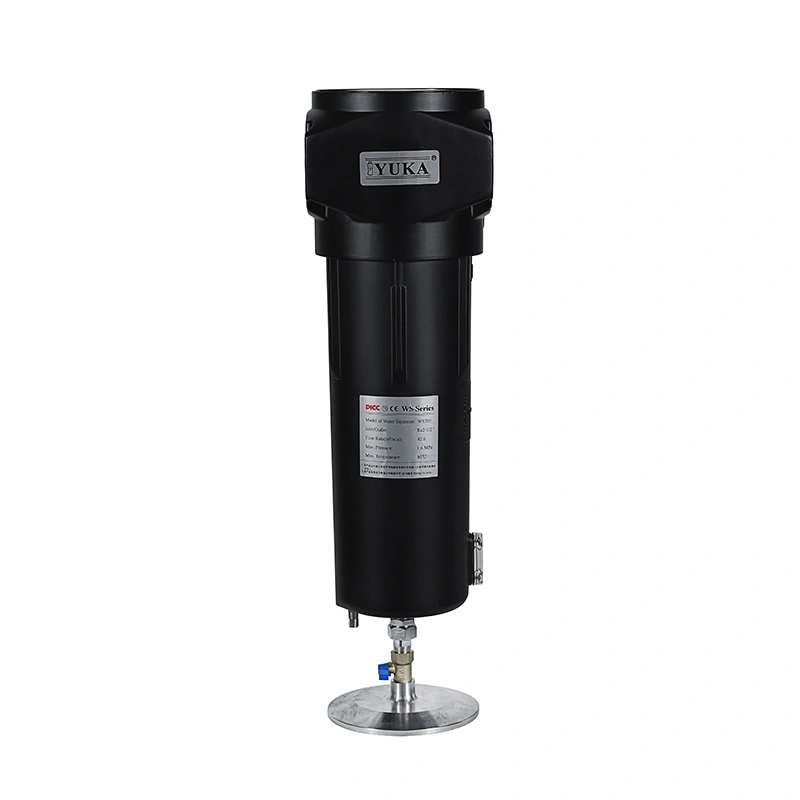

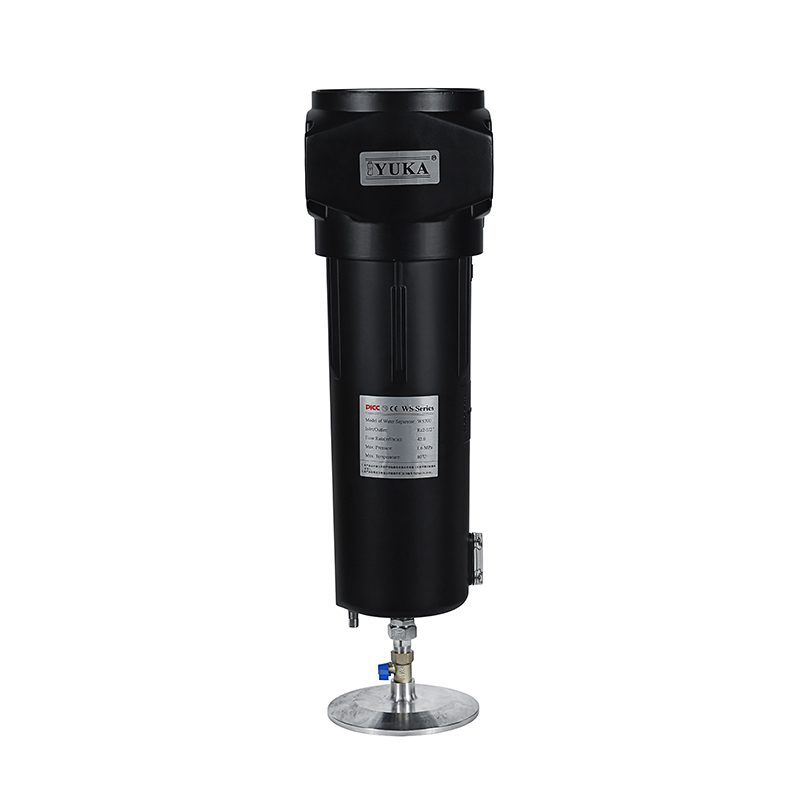

Remove Compressed Air Systems’s Water By YUKA WS800 Compressed Air Liquid Separator for Protecting Refrigerated Air Dryer, 50.0 m³/min
Compressed air systems contain bulk liquid that causes pipeline corrosion, damage to valves, air cylinders, and tools, and reduces the efficiency of after-air coolers, heat exchangers, and compressed air filters. Today at HSAIR, we are pleased to introduce YUKA WS800 Rc or NPT3" Compressed Air Liquid Separator emerges as a game-changing solution. It is usually installed after an air compressor and an air receiver, or before a pre-air filter to protect downstream equipment from the damage of bulk liquid. The separation rate is 99.9% at a flow rate of 50 m³/min, and there is a sight glass for detecting condensate levels.
Key Features of YUKA WS800
▶ Unmatched Moisture Removal
- Advanced cyclone technology remove 99.8% of water
- Prevents corrosion in downstream tools/pneumatic equipment
- Meets ISO 8573-9 air purity standards
▶ Optimized for High-Volume Operations
42m³/min airflow capacity supports heavy-duty compressors up to 260HP
▶ Proof Max. Working Pressure
Durable aluminum construction withstands 16 bar working pressure without sight glass
▶ Profit-Boosting Value for Your Business
High quality promised, Easy integration with screw/piston compressors, dryers, and storage tanks
▶ Low-maintenance Design
Don’t need to change air filter element, reduces customer service costs
▶Certification
CE certifications simplify global distribution
Technical Highlights
Model: WS800
Port Size: RC/ NPT 3”
Max Flow Rate: 50.0 m³/min
Working Pressure: 16 bar
Initial Pressure Drop: ≤0.07 bar
Drain Type: Automatic float drain HAD20B
Compliance: CE, Factory in-house Report
Why Cooperate with Us?
As a leading manufacturer of high quality compressed air and gas treatment equipment since 1998 in China.
✔ With over 27+ years of experience in research and development, production, and marketing.
✔Production facility covers a total of 20,000 square meters.
✔ Help you quickly find long-term and reliable supply resources
✔ Reduce your international procurement risks and costs
✔ Provide you with a wide variety of compressed air filtration and separation equipment to meet the varying needs of the market.
✔ Extensive experience with well-known air compressor brands.
Contact Heng Sheng Filtration Today
Get in touch with Heng Sheng Filtrations's sales experts today to learn more about Compressed Air Liquid Separator. 📧 sales@hsfiltration.com | website at: //www.hsfiltration.com # Moisture Water Separator Supplier Air Compressor Water Separator #Industrial Air Treatment # Air Dryer Filter
Literature and Reference Materials
HSAIR Catalogue_YUKA WS Series Air Water Separators 16 bar.pdf
