| Attribute | Value |
|---|---|
| Brand | YUKA |
| Product Type | Air Filtration |
| Product Series | YD Series |
| Model No. | YD030 AX |
| Flow rate | 64 CFM (1.8 m³/min) |
| Port Size | 1/2" RC/NPT/BSPT |
| Micron rating | 0.01 Micron |
| Materials of Construction | Die Cast Aluminium |
| Proof pressure | 16 bar (22 to 232 psig) |
| Operating pressure | 1.5 to 16 bar (22 to 232 psig) |
| Operating Temperature | 2 to 80 °C |
| Housing Service Life | 15 years |
| Element Change Interval | 6000 to 8000 hours |
| Compatible Element | L030 AX |
| Accessories | DPI, Sight Glass, Internal Automatic Drain |
| Origin | Shenzhen, China |

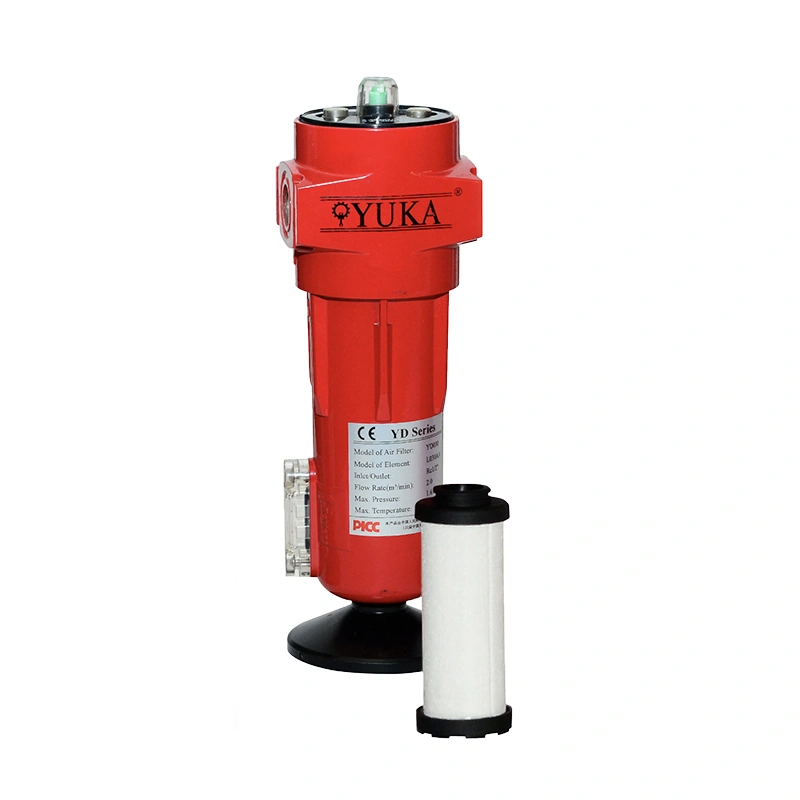

Discover YUKA YD030 64 CFM 0.01 Micron Oil Coalescing Air Filters are available with a pressure of 16 bar, inlet/outlet size 1/2” to get rid of particles and oil aerosols vapors for your Atlas Copco compressed air system with quality of air.
The air filter housing YD030 is manufactured from aluminum alloys through die casting technology and are subjected to a 1000 hour neutral salt spray test for corrosion resistance according to ISO 9227:2006, a burst pressure test for a 5:1 safety factor, and each air filter is 100% tested for pressure leaks.
The oil coalescing filter element L030 AX are made from HV borosilicate glass microfiber media that repels oil and water for enhanced coalescing performance that effectively removes dust particles, water mist & oil mist down to 0.01 micron. The residual content of oil mist does not exceed 0.001 mg/m³ (21℃), 1ppm(w), meeting air purity class ISO 8573-1, reducing energy consumption, total cost of ownership and adding to your satisfaction. This is one of the key reasons our air filters are highly regarded.
Key Aspects of Make Us Different with Other Suppliers
Ultra High Efficiency Filtration
• Particle removal down to 0.01micron
• Including coalesced liquid, water and oil
• Residual content of oil mist does not exceed 0.001 mg/m³ (21℃)
• Air quality requirements of all versions of ISO8573-1
All Aluminum Die-Cast Body
• Manufactured from aluminum alloys through die casting technology
• Electrophoretically treated to extend the life up to fifteen years
Wrapped Air Filter Element
• The filter material is not easily penetrated by fast-impacting solid particles
Connected with Tie-rod
• Filter elements tightly connected through tie-rod at pressure working condition
Accessories Suited
• DPI Shows differential pressure drop
• Sight glass clearly check the level of condensate
• Automatic Float Drain discharge more reliably without air loss
Certificates
• With TUV and in-house test report
Indication Design
• A clear indication of where to tighten and loosen the air filter housing is provided by the design of the lock
Why Us?
• With over 27+ years of experience in research and development, production, and marketing.
• Production facility covers a total of 20000 square meters.
• Help you quickly find long-term and reliable supply resources
• Reduce your international procurement risks and costs
• Provide you with a wide variety of compressed air filtration and separation equipment to meet the varying needs of the market
• Extensive experience with well-known air compressor brands
Contact Heng Sheng Filtration Today
Get in touch with Heng Sheng Filtrations's sales experts today to learn more about 0.01 Micron Oil Coalescing Air Filters for air compressors and why these components are so important to overall air compressor performance. Please drop us an e-mail at sales@hsfiltration.com.
If you can not reach us by phone, please feel free to visit our website at: //www.hsfiltration.com.
